I saw a bunch of these at a local museum, and thought how much some of them looked like action figures. Perhaps “a long time ago” a Hopi fella happened to spot a certain intergalactic bounty hunter apprehending his prey, and decided to carve a Kachina of this obviously supernatural vision.

I had no source for Cottonwood Root so I decided to carve mine out of 4″ x 4″ x 8″ Basswood. In order to maximize the size of the figure, I planned to carve the arms and rocketpack separately.

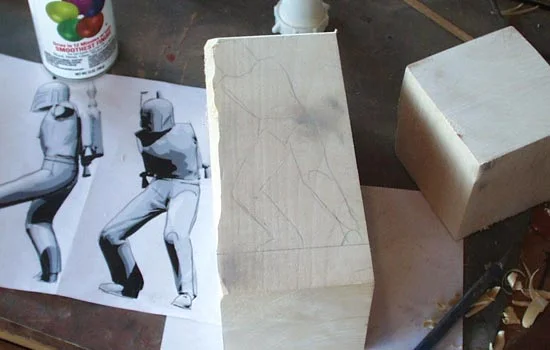

The first step was to cut of any excess wood (saved for arms and pack) and draw the rough figure for front and side profiles. I used razor and hack saws to carve the rough silouhettes for both profiles.

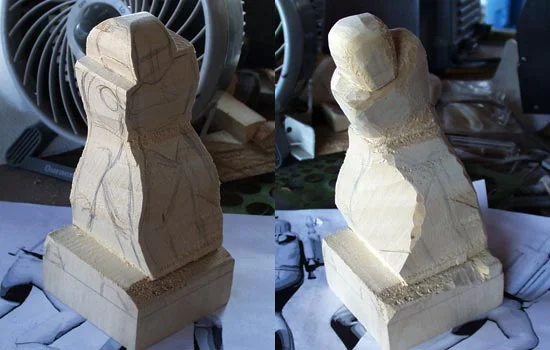

I used scalpel tip X-Acto blades to start carving away the excess wood. The curved blades cut easily through the wood without crushing the grain as a straight blade would.

The head is better defined. I want to carve enough away to make sure of my proportion but not so much that I weaken the figure or prematurely remove a piece I need.

More detail on the legs and it was this point that I decided to leave the base looking like rock. it just started to look that way all by itself.

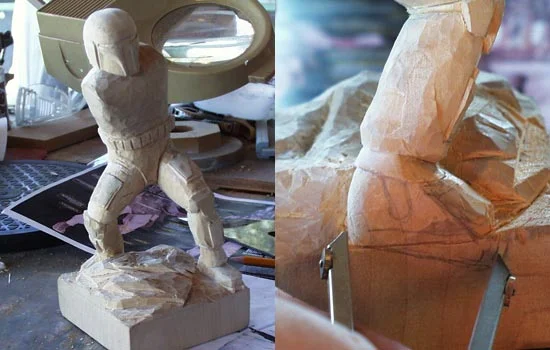

Starting to define leg details like pouches and knees. STILL working on the base! The base is pretty much done and I’m happy with the basic proportions. Now to add details without getting TOO detailed. My first mistake. I cut off too much of the right toe so I decided to angle the foot down on a slope of the base.

All details filled in and sanded. You can see the new foot position here. I think it actually makes the figure a bit more dynamic.

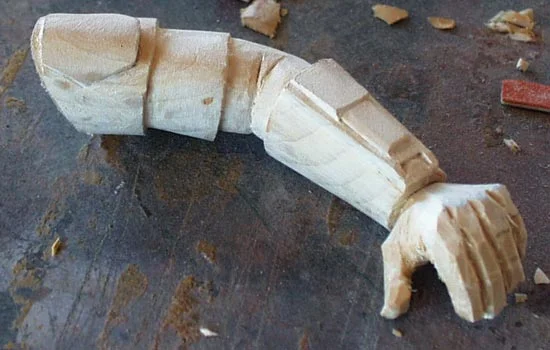

The left arm carved from one of the scraps. It was difficult to find a piece with the grain running in the right direction. If it ran perpendicular to the arm, it would be weak.

Right arm with pistol grip. I wanted to make the gun part of this piece but I had trouble with the geometry so I had to settle on adding it later.

The gun added to the arm

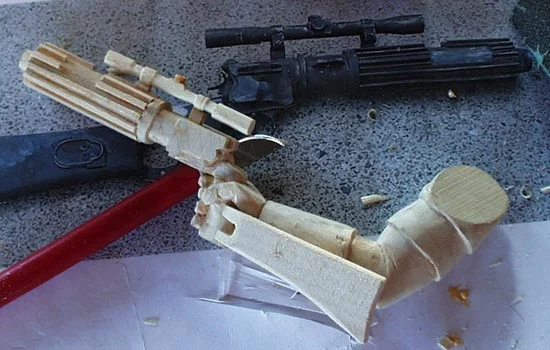

The shoulder stock was the part that gave me fits on the first attempt. It was much easier to do in sections.

The rocket pack was carved from Basswood but I used dowels for the cylindrical parts. the nozzles were attached with aluminum rods.

The belt pouches were carved separately so they could show motion.

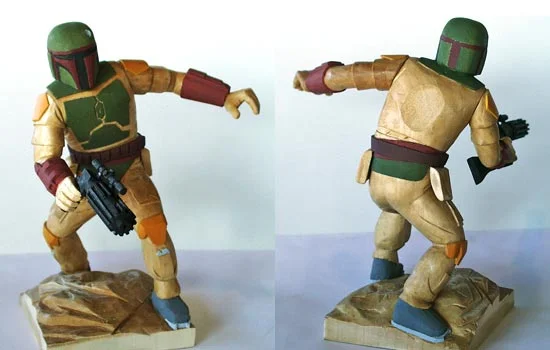

I coated the entire figure in shellac which seals the wood and brings out the grain. Since the wood looked so good, I decided to only paint parts that were NOT representing fabric (or the ground). I sanded a flat spot on the back to allow easy attaching of the rocketpack.

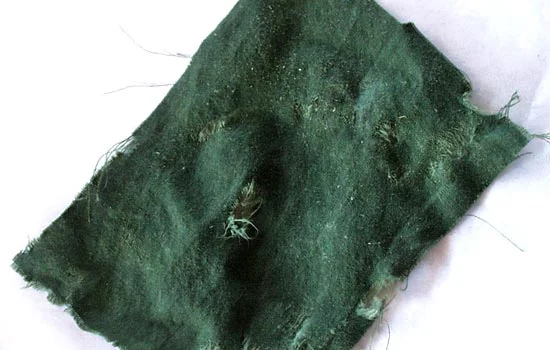

Kachina figures traditionally use cloth, feathers and natural materials to complete the figure. For Boba’s cape, I cut a piece of bandana and distressed it on the belt sander.

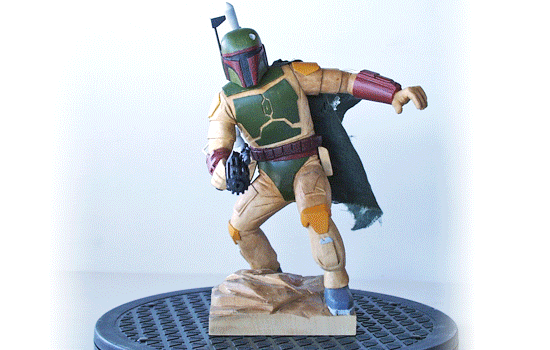

All assembled! I used plastic coated wire for the hoses going to the gauntlets and the helmet “antenna” is a small piece of wood attached with a steel rod.

My original goal was to make the Kachina using traditional methods (i.e. no power tools) and stylize the details through Hopi eyes. Unfortunately, Boba was also filtered through the eyes of a 21st Century geek so he’s probably not stylized enough….oh well.
